MacBookAir7,2 Early 2015: MJVG2LL/A (1.6 GHz Core i5 or 2.2 GHz Core i7)

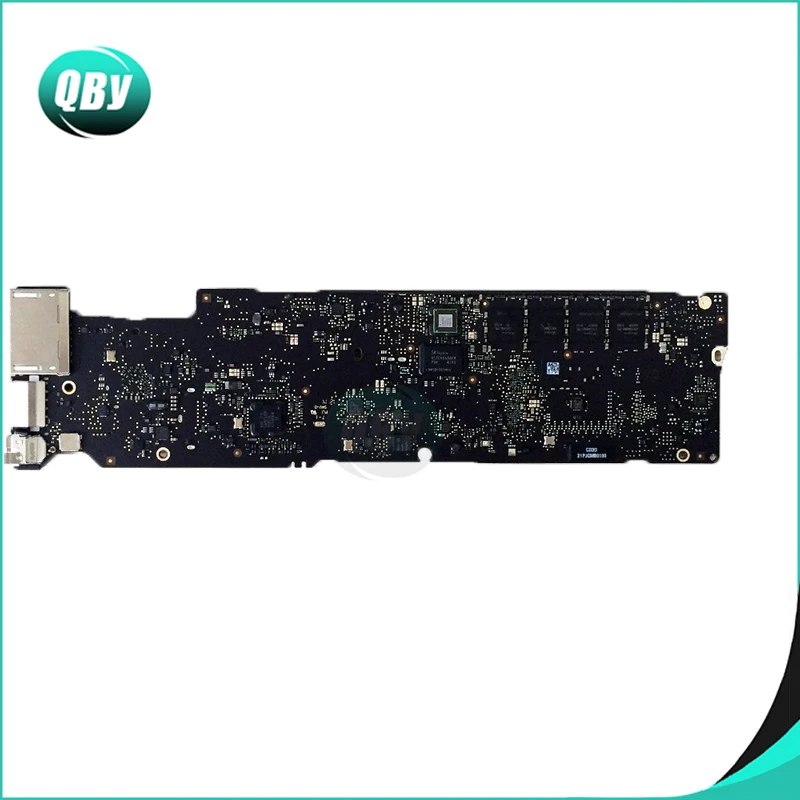

MacBookAir7,2 Early 2015: MJVE2LL/A (1.6 GHz Core i5 or 2.2 GHz Core i7) Onboard CPU: 1.6GHz Intel Core i5 (I5-5250U) NOTE: Logicboard if for MacBook Air 13 inch Early 2015 can be used for all these models from 2013 to 2017 Please make sure you’re looking at the right schematics and boardview, if you’re not sure about it please contact us.A1466 Logic Board (1.6GHz Core i5, 4GB RAM) for Apple MacBook Air 13 inch A1466 Early 2015 * Instant delivery – you will get a download link for 820-00165 schematics and boardview files to your email after you complete checkout and will be available to download from your account page too. MacBook Air 13 Early 2015 A1466 820-00165 Schematics Boardview files to help repair your MAC! Boardview software is free to use and can download here. With this software you can open all boardview files that have different file extensions and no need to use specific software for each file extension. PDF Schematics file – detailed schematic view containing part numbers, voltage resistance etc.īRD or BV Boardview file – which is a professional “factory” tool that allows to find any component, pin or signal (test point) on a logic board in a few seconds. Provided MacBook Air 13 Early 2015 A1466 820-00165 schematics and boardview files: To read schematics (.pdf) you will need PDF reader installed, for example free adobe reader. We aim to provide helpful illustrations for software or hardware engineers facilitating in root cause analysis. Schematic diagrams are like maps that are used to design, build and troubleshoot the circuits. This provides a clear and useful index of what can be a complicated practise. In a schematic diagram, all the details which are not important to key information are omitted.Ī schematic diagram uses oversimplified illustrations providing a breakdown of detailed information. Using the symbols, graphics and abstract other than real pictures. To read and understand MacBook Air 13 Early 2015 A1466 820-00165 schematics boardview, the basic symbols and conventions must be understood.Ī schematic, often referred to as Schematic Diagram or Block Diagram, is a way to represent the elements of any system or electronics. Schematics (.pdf) and boardview (.brd or. MacBook Air 13 Early 2015 A1466 820-00165 Schematics and Boardview
